STRONGLASS

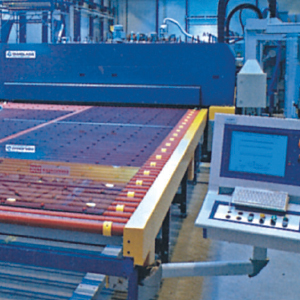

AUTOMATIC HEATING CONTROL

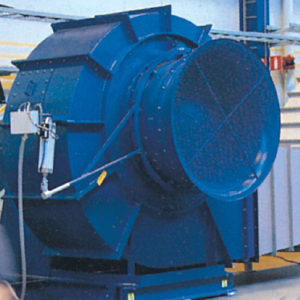

UNIQUE BLOWER SYSTEM

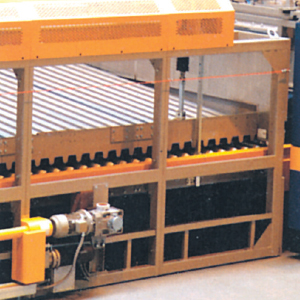

HIGH EFFICIENCY QUENCH

TEMPERED GLASS

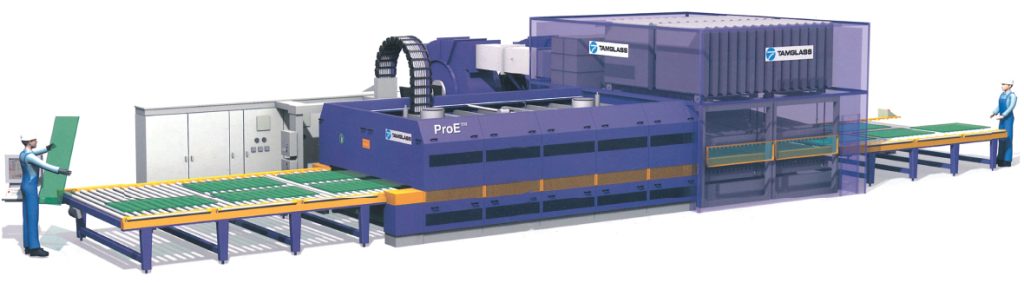

AL-FATTAH Stronglass is basically the premium quality Tempered Glass, which has been thermally treated to induce maximum strength and safety features. In order to attain maximum quality and safety features. Al-Fattah join hands with TAM Glass Finland, who is world’s No. 1 best Tempering Line manufacturer. Al-Fattah brings their top of the Line latest Super model ProETM which gives the liberty to temper any type and any size of glass including super Low-E.

AL-FATTAH Stronglass comes with many outstanding features that make Stronglass the instant choice over ordinary glass.

FEATURES:

Strength as Compared to Ordinary Glass:

Al-Fattah Stronglass is 5-6 times stronger than its equivalent thickness of normal or ordinary glass.

High Thermal Shock Strength:

Stronglass provide 6 times more resistance to thermal stress in comparison to ordinary glass. It offers increased resistance to both sudden temperature differentials up to 250 C0 Compered to normal annealed glass, which can withstand temperature differentials up to 40 C0 only.

Strength in Terms of psi:

Stronglass induced with compressive stress of 11,000 to 20,000 psi on surfaces and not less than 9700 PSI on edges.

Edge Strength:

Stronglass has a high edge strength as compared to normal annealed glass. This gives freedom to designers to use the stronglass in spider glazing and point fixed glazing.

Safety:

Al-Fattah Stronglass is very difficult to break but even on breakage, it will break into small, relatively harmless fragments there by greatly reducing the likelihood of serious injuries in comparison ordinary annealed glass. Stronglass the instant choice over ordinary glass.

Standards:

AL-FATTAH follows the standards ASTMC 1048 or DIN 1249

Note:

Stronglass cannot be cut or drilled after Tempering. Any field alterations, including edge grinding, sand blasting or acid etching can cause premature failure.

Cost Efficiency:

5-times more strength and safety character induced in stronglass by heat treatment process is undoubtedly a great intrinsic value addition to glass at a slightly higher price. Effectively, paying a little more for Stronglass is actually paying less than ordinary glass in total, considering the replacement cost and risk factors involved in cause of ordinary glass.

Applications of Al-Fattah Stronglass:

Al-Fattah Stronglass is used in place of ordinary glass on account of required increased strength and reduced likelihood of injury in the event of breakage. Its use is now fast growing in the architectural field. Like in the most developed countries the concept of using Stronglass Is now becoming fast.

Al Fattah Toughened glass is regularly specified in:

  1. Window
  2. Partitions
  3. Sliding or swing doors
  4. Shop cabins
  5. Furniture and interior decoration
  6. Glass tables
  7. Glass facades
