PRODUCTION METHODOLOGY:

RAW MATERIAL

To achieve an incomparable European Standard of quality for the aluminum profiles, Al-Fattah imports the Highest Quality 100% Homogenized Aluminium Alloy Billet, 6063 from ALBA & DUBAL.

To Describe Aluminium Profile Production more precisely, let us emphasize the steps involved in it for your better perception.

Aluminium Profile Manufacturing

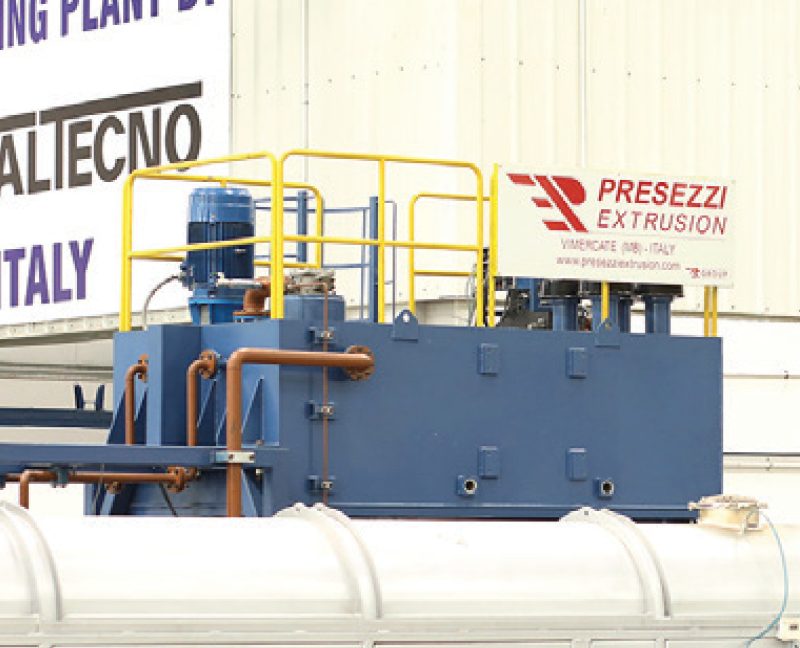

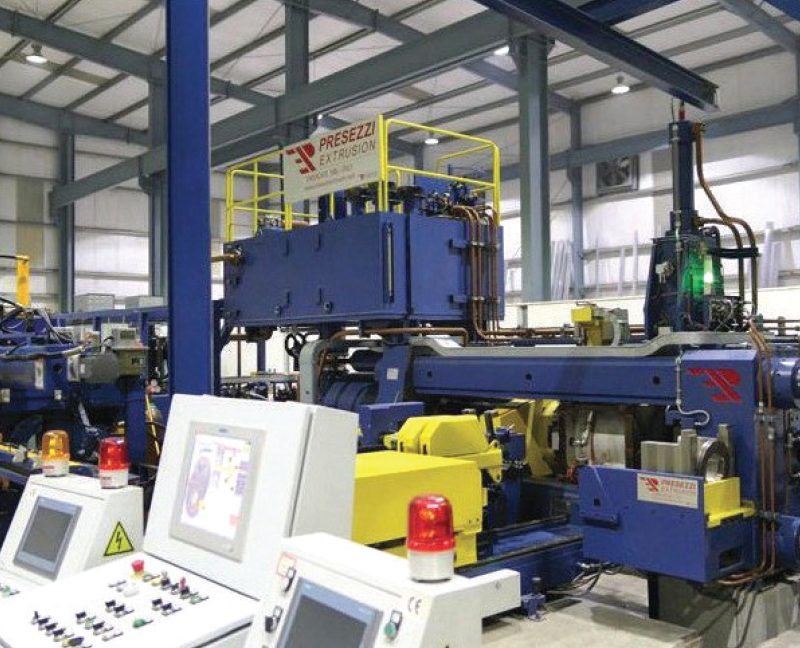

Al-Fattah Aluminum has installed the world’s best Aluminium Extrusion Plant from PRESEZZI ITALY which ensures 100% Profile Quality as per European Standards. This is the only Latest European Aluminium Extrusion Plant in Pakistan. We just load the billet on the billet loading table and the PLC controlled computerized system takes care of the whole production process.

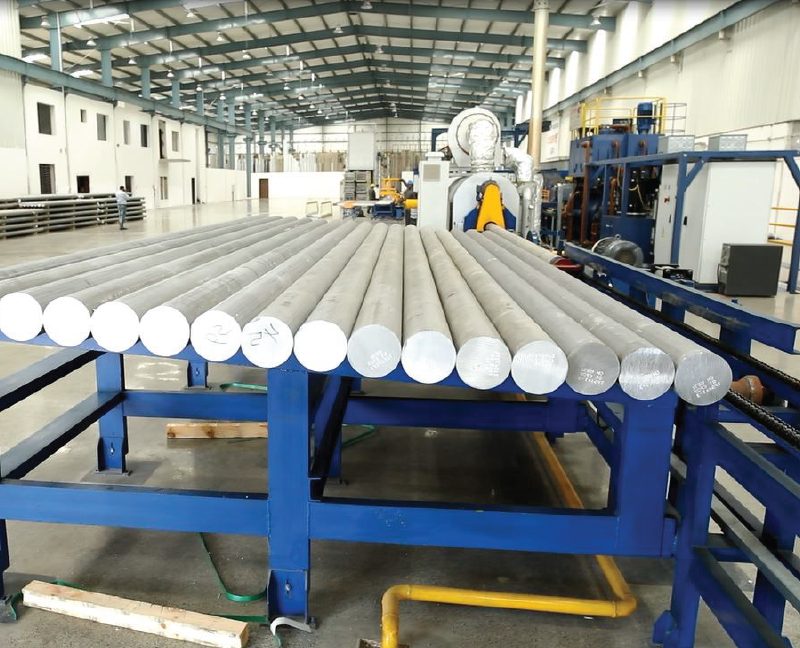

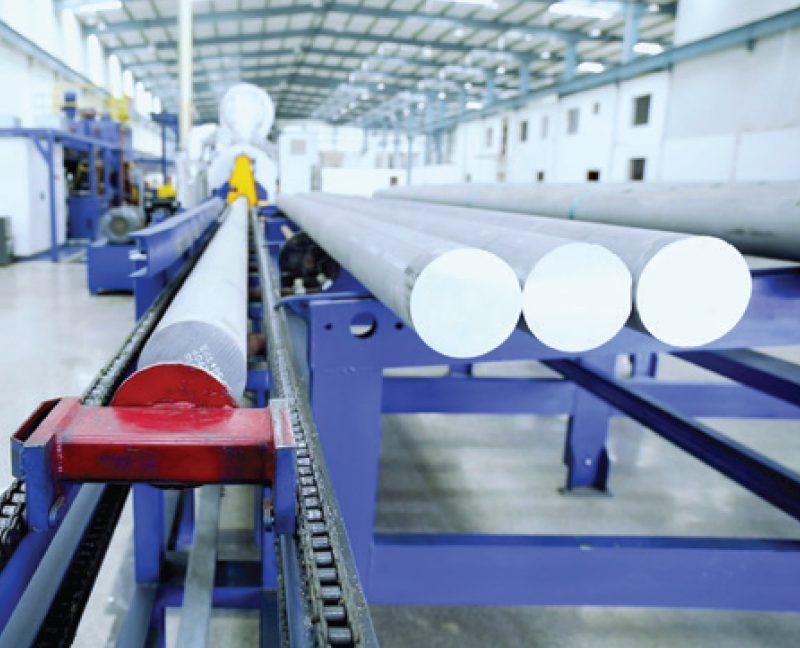

BILLET LOADING

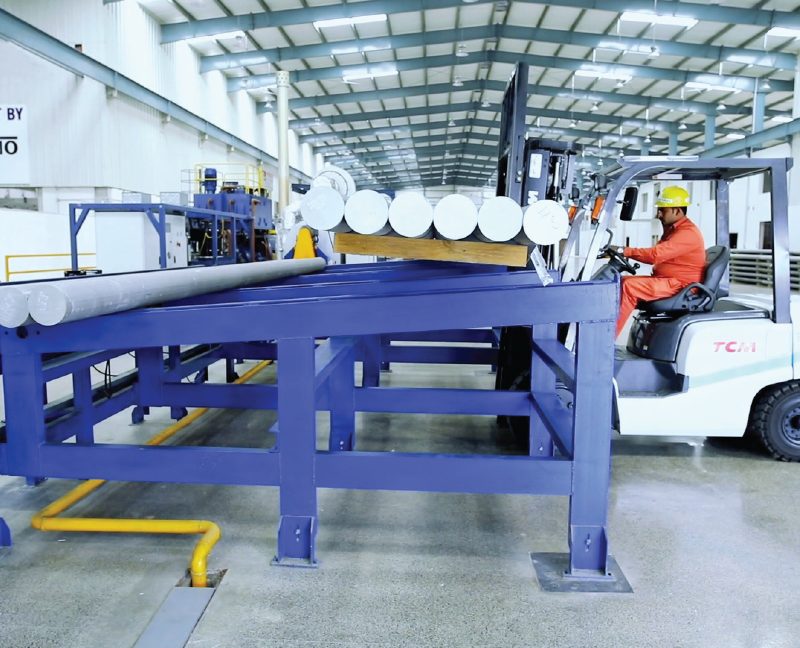

Al-Fattah imports 6-Meter-Long billets & Load them at Loading Table by Fork Lifter. Afterwards, billets are pushed forward for washing and cleaning by special brushing machine.

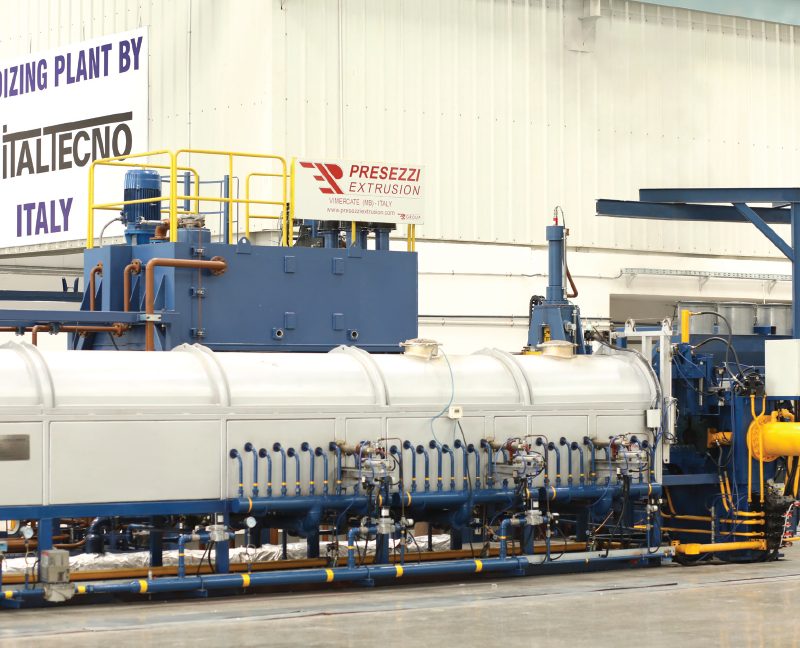

BILLET HEATING FURNACE

Billet heating plays a vital role in the profile quality. Al-Fattah Billet Heating furnace is a 5 zone furnace and it’s heated up the furnace gradually in a homogenized way. It is 100% computerized PLC controlled and is equipped with high-tech efficient sensor system. It can heats up the billet up to 550C as per the requirements of profiles.

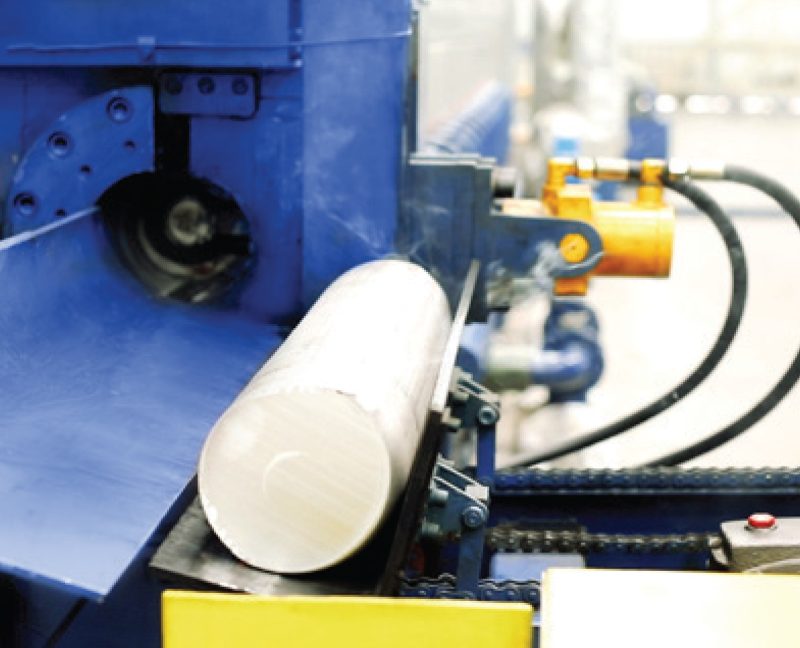

HOT LOG SHEAR

Imported Billet is 6 Meter-long and after heating it at desired temperature, it is cut into required sizes. Al-Fattah Hot-Log Shear cuts the billet very precisely accurately.

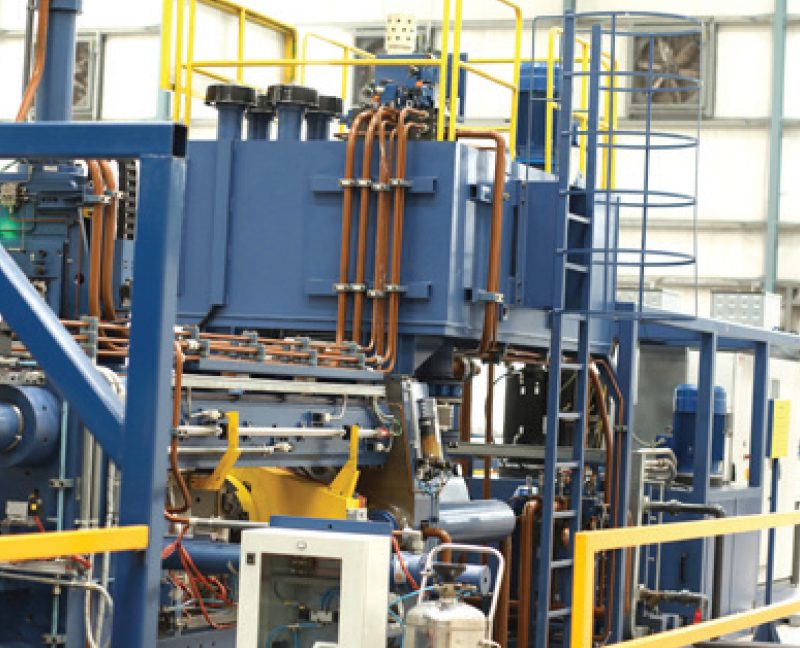

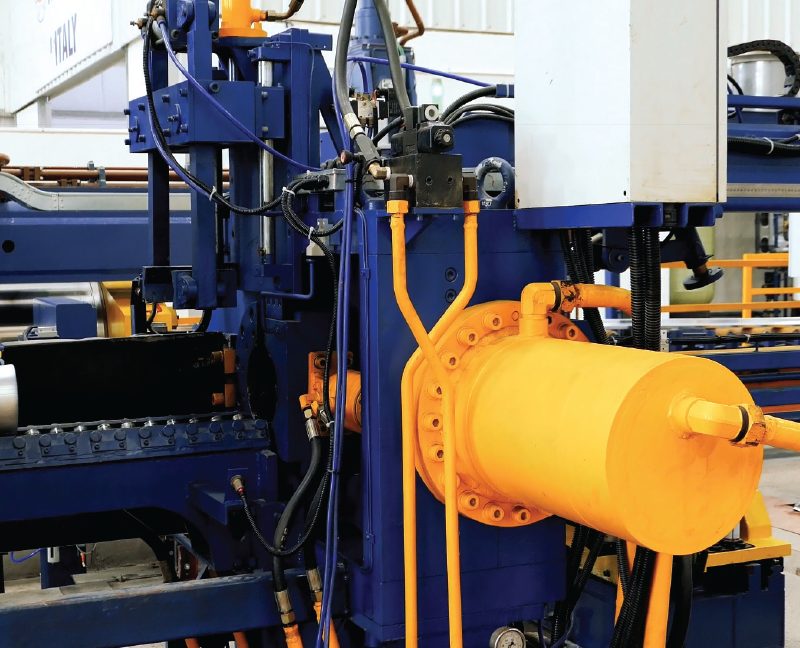

EXTRUSION PROCESS

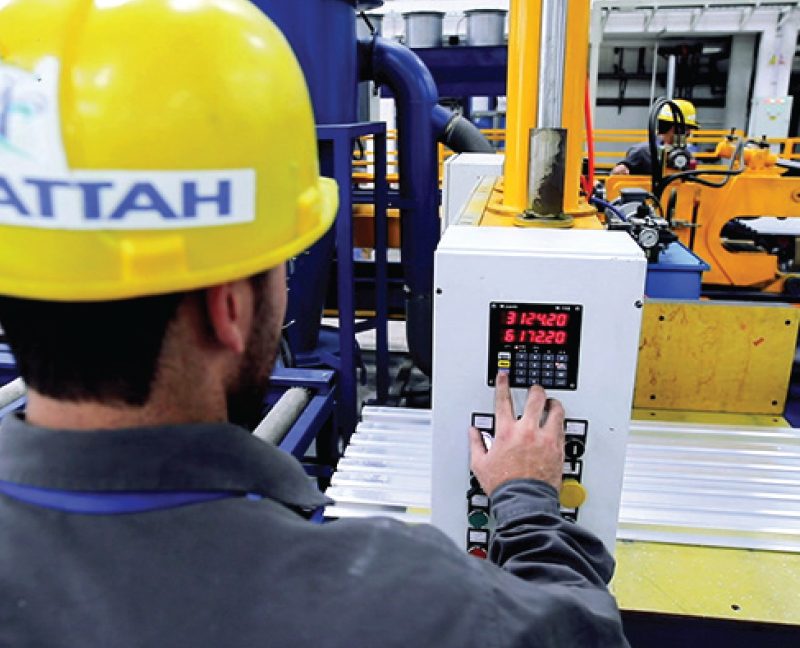

Extrusion is the most important and critical process. During extrusion temperature, pressure, extrusion speed & puller speed play a vital role in the quality of profile. All these parameters are automatically controlled by the computerized PLC controlled system in our plant Extrusion speed and puller speed are synchronized by the computerized PLC control system.

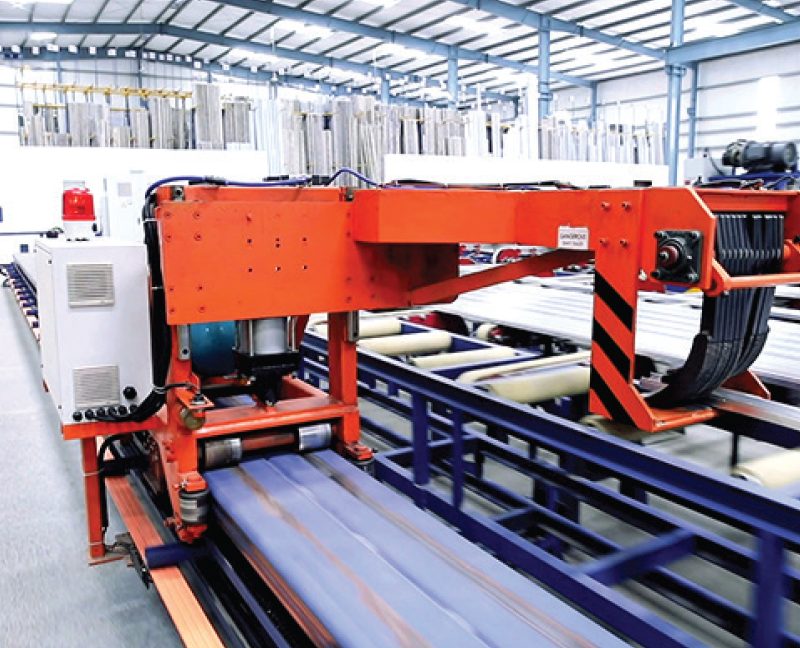

DOUBLE PULLER

To get the best quality results & optimum production we use the most advanced state of the Art double puller system.

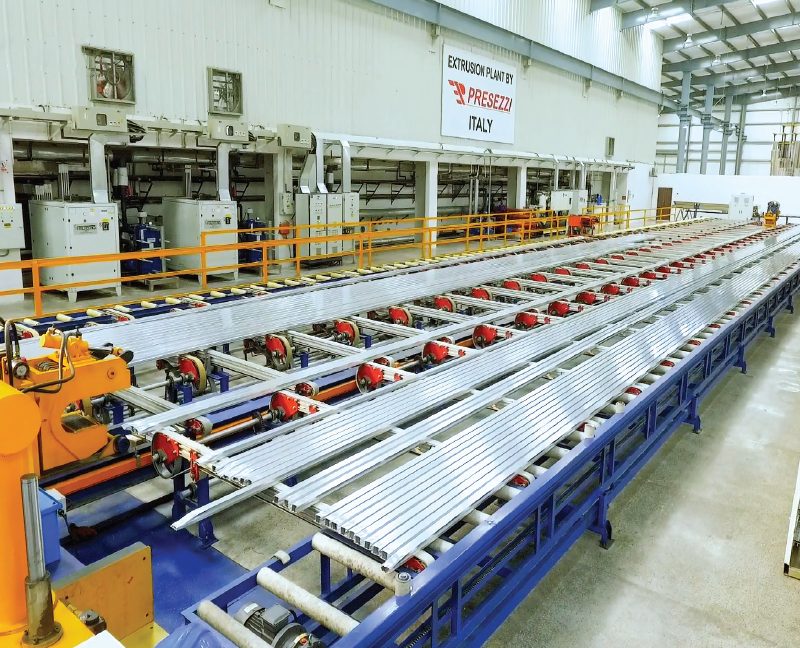

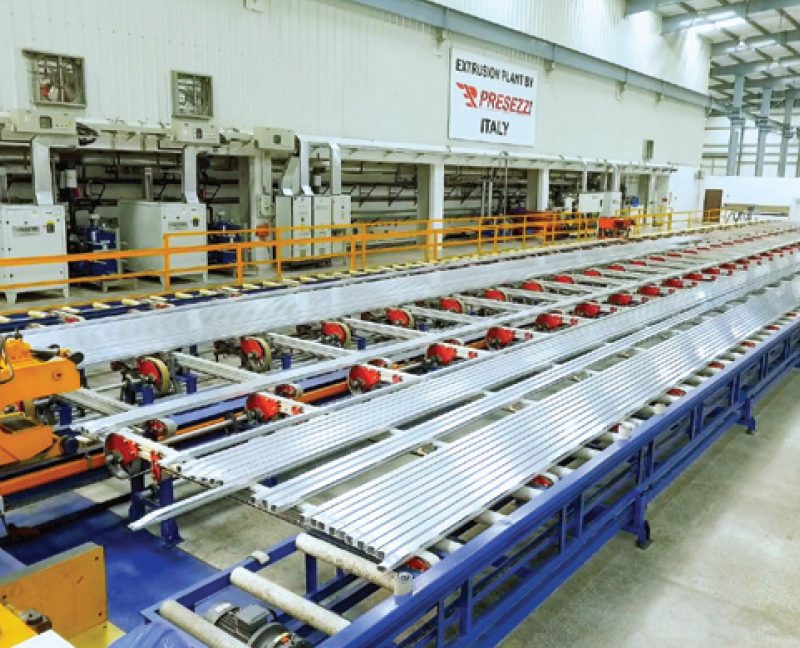

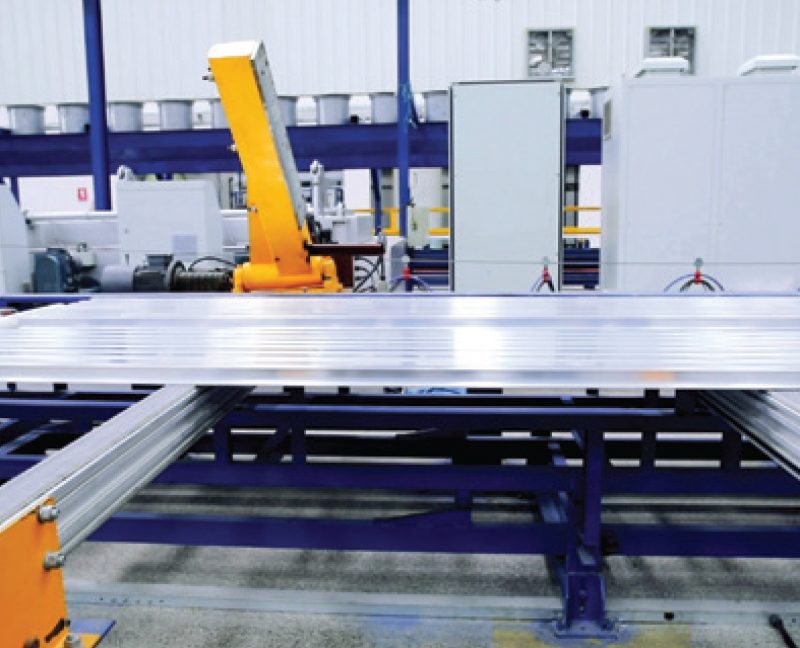

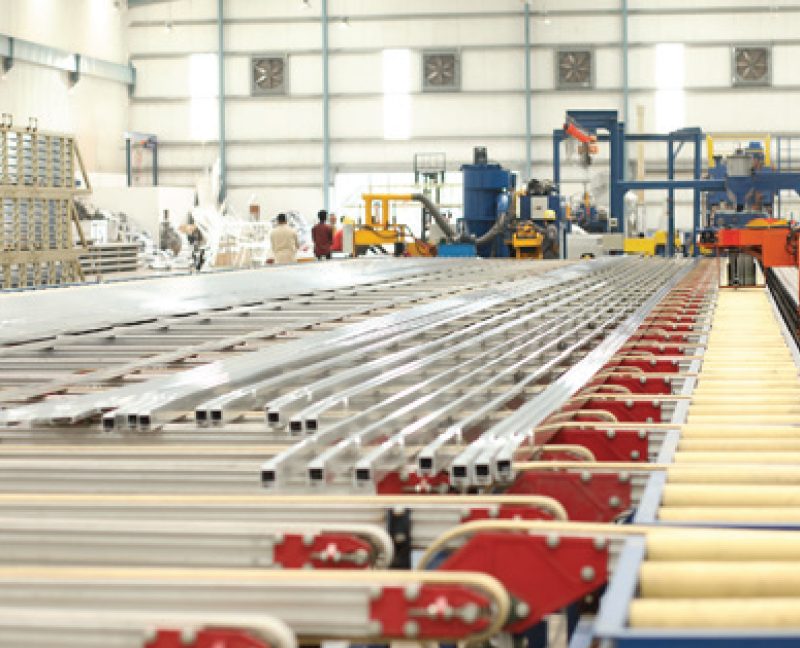

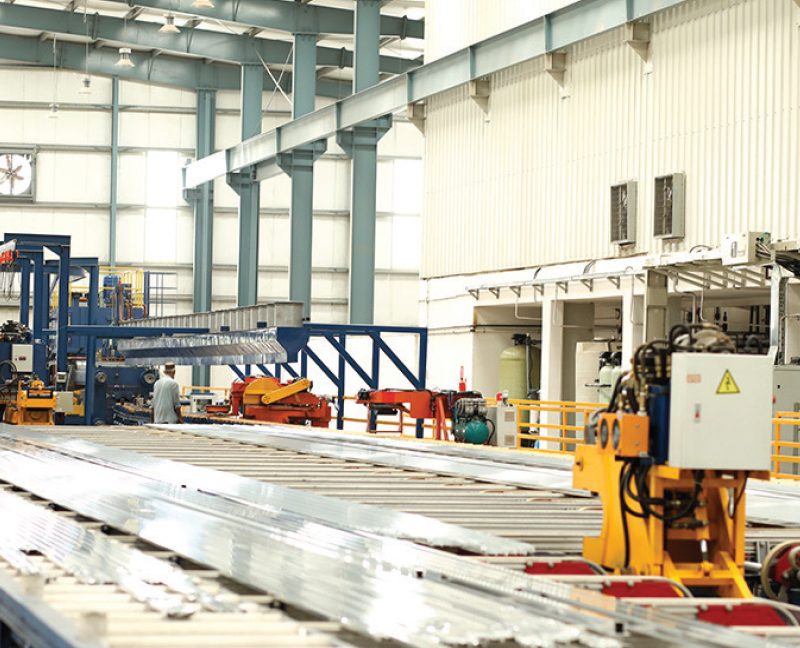

HANDLING TABLE

We have straight of the art fully automatic PLC controlled Handling Table, which keeps the profiles scratch less after extrusion.

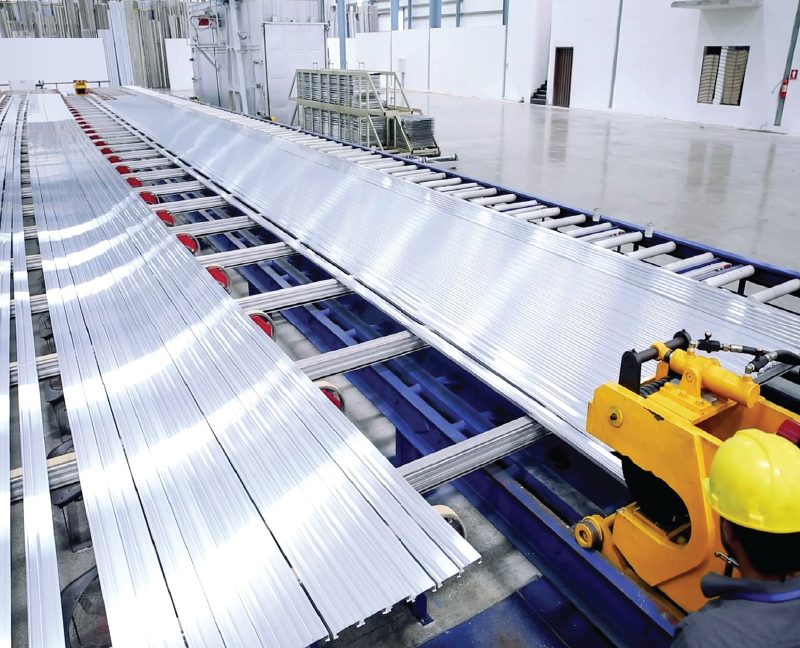

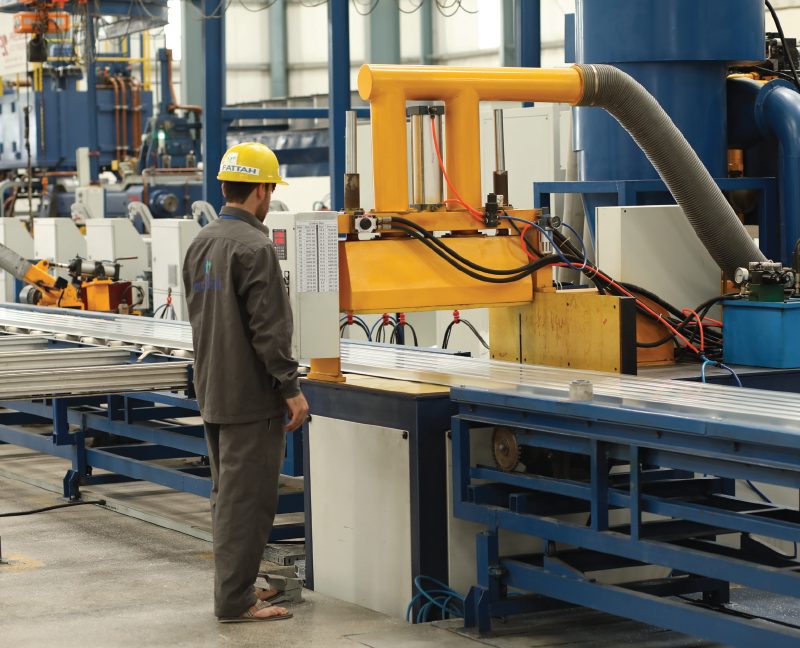

STRAIGHTENING TABLE

AL-FATTAH uses state of the art stretcher for straitening the aluminium profiles after extrusion.

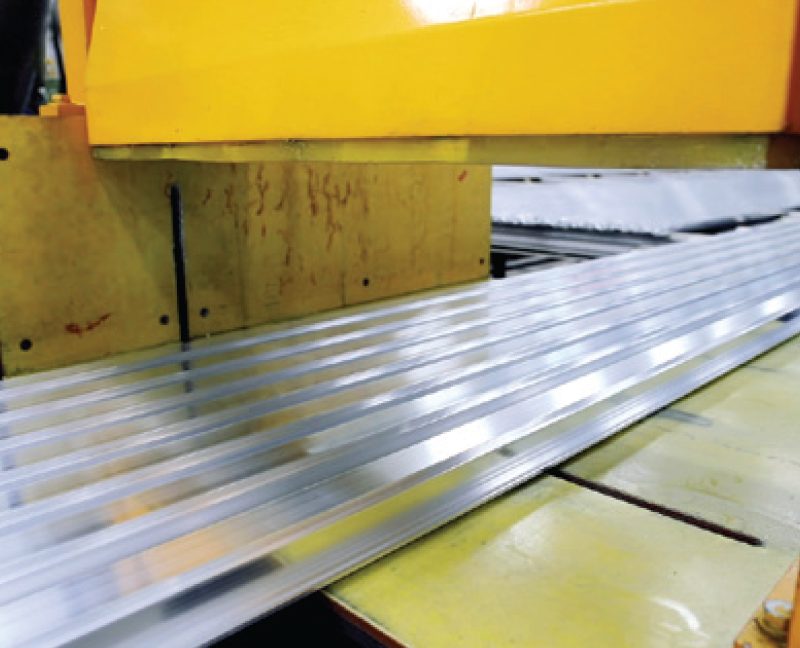

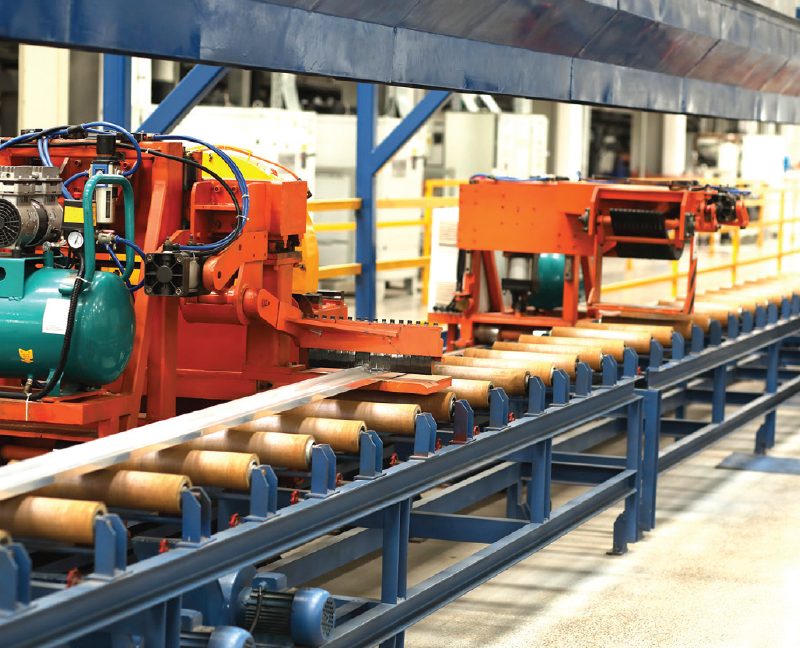

FINISHING SAW

AL-FATTAH has the automatic cutting line to cut the profiles in 100% accurate sizes, keeping the edges of profiles very smooth.

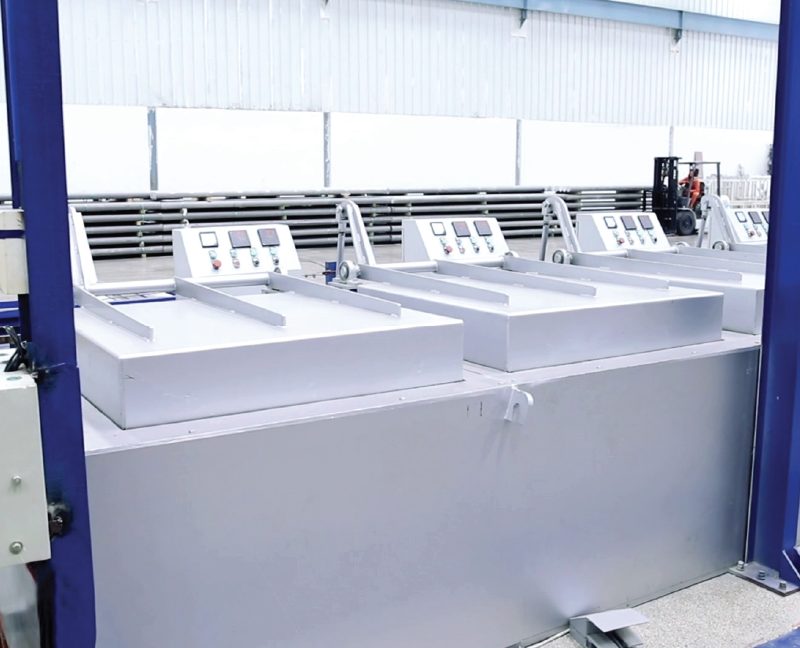

DIE HEATING OVEN

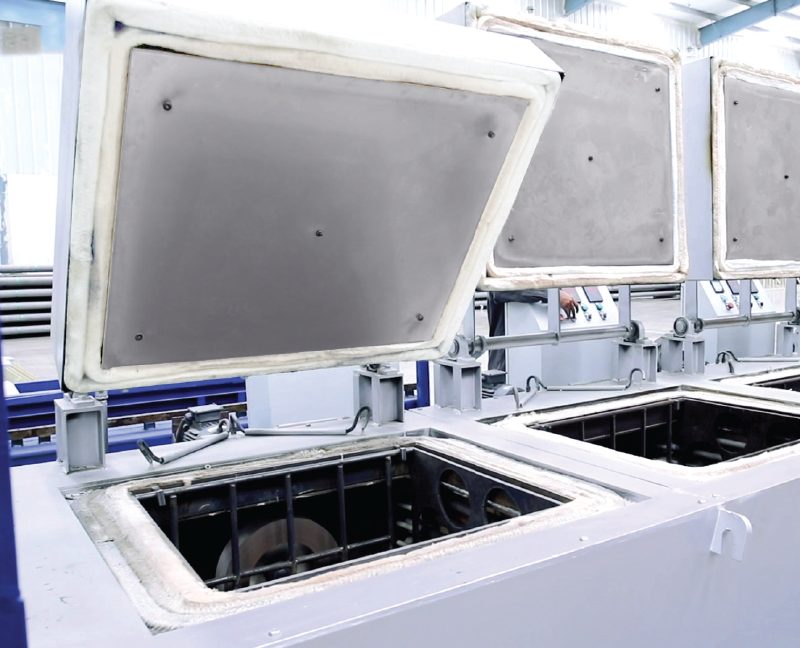

We have latest 4 Zone Die heating oven which heated up the dies up to 500°C in a homogenized way.

AGING OVEN

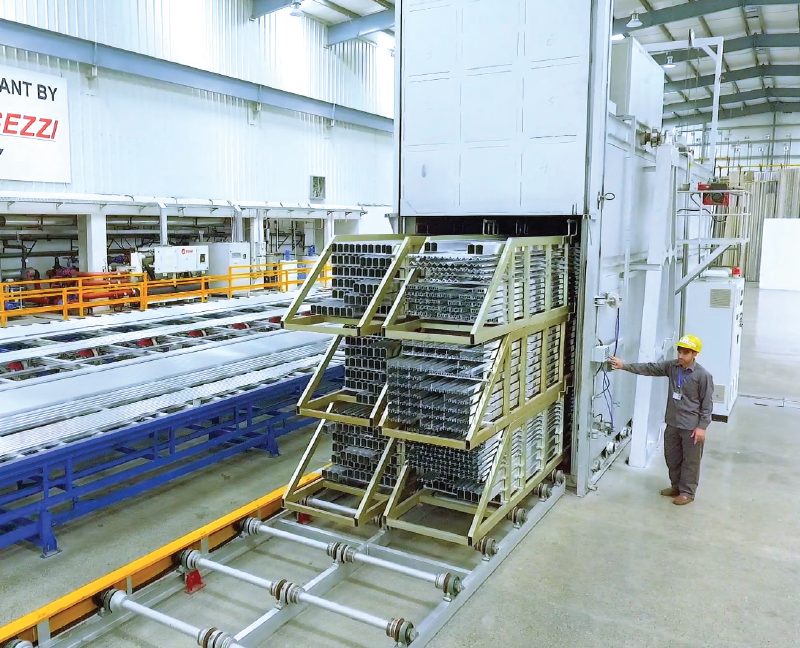

Al-Fattah is equipped with the highest imported aging oven with double burner technology. It ensures 100% uniform hardness of all profiles upto T6 European Standards.

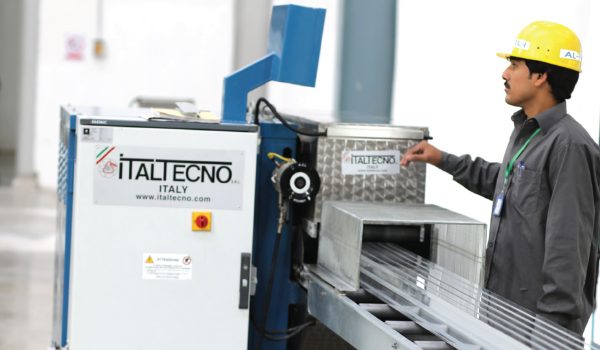

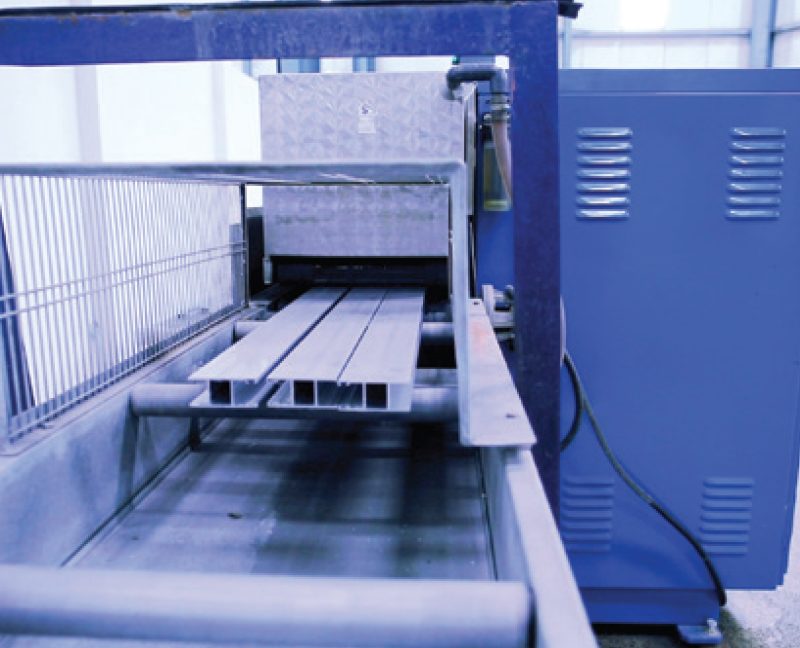

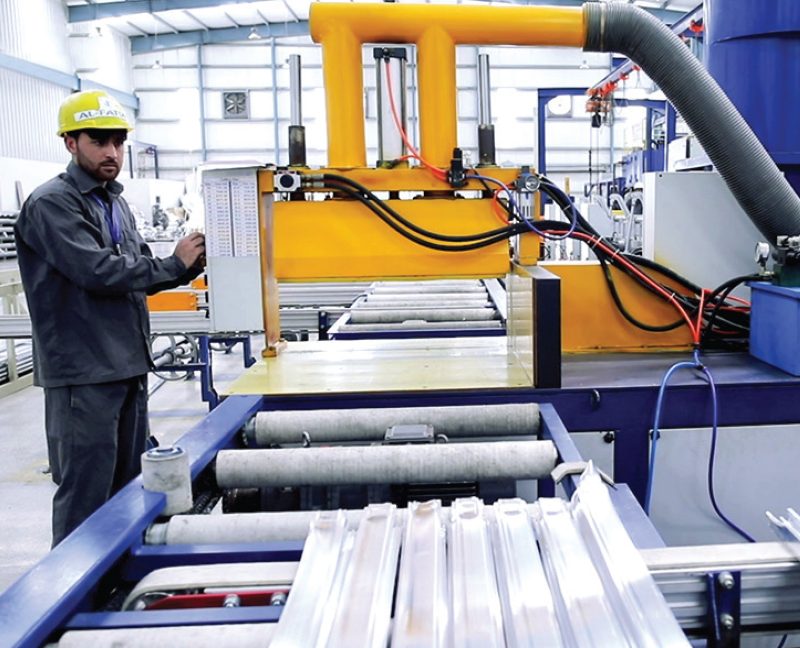

PROFILES CLEANING MACHINE

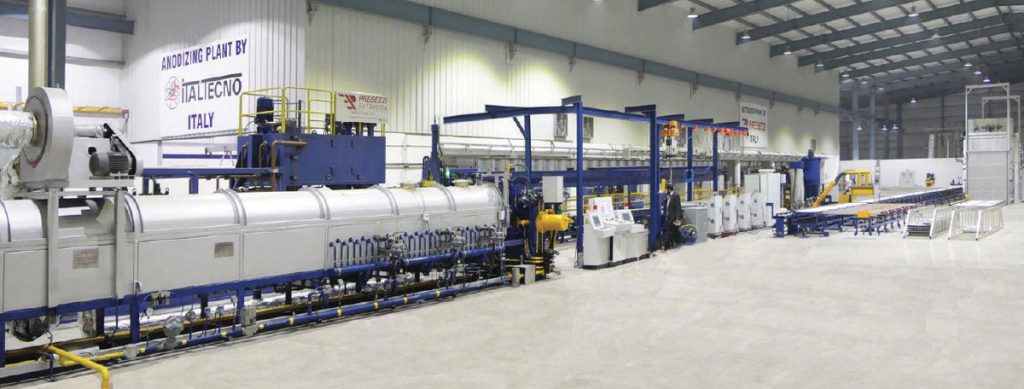

To achieve the best anodizing results we give a special treatment to each profile, which smooth’s the profile surface before anodizing. We use latest Italtecno Italian machine for smoothing the profile surface.

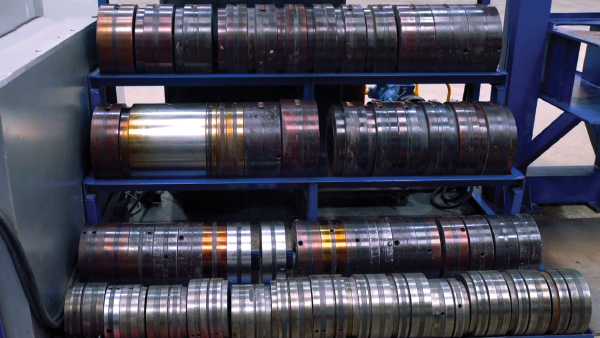

DIES

Our DIE DESIGN DEPARTMENT is capable of designing any kind of Profile dies to cater the need of customers.

We use 100% high quality imported Dies to get the high quality profiles, we have a largest range of profiles.

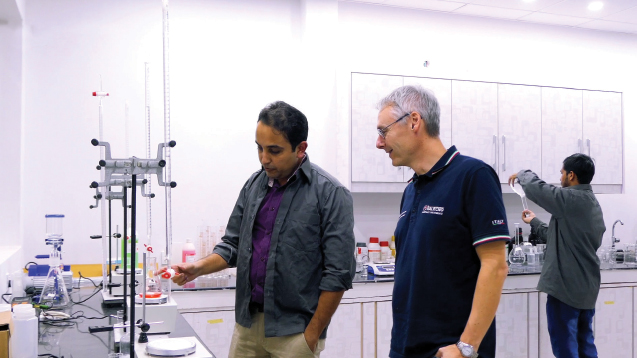

LATEST LAB

Al-Fattah has the latest, the most modern and well equipped Lab & our team is well trained in keeping a check on the use of chemicals for the best anodizing results.

QUALITY ASSURANCE

AL-FATTAH QC department is well equipped with modern gadgets and tools as well as accompanied by trained staff capable of keeping through quality check ensuring European standard in each and every profile.

CUSTOMER'S SATISFACTION

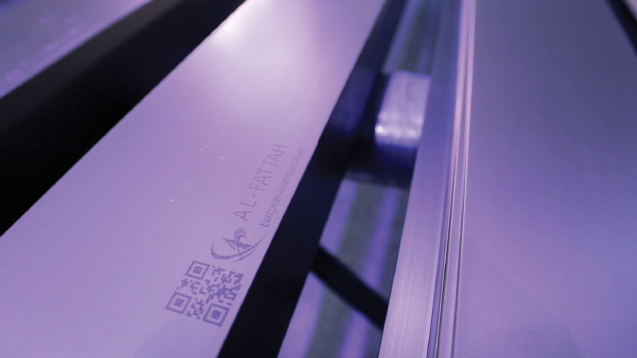

AL-FATTAH is very much concerned about his customers’ satisfaction in order to save them from any deception; each profile is stamped with “AL-FATTAH European Aluminium plant”

PROFILES PROTECTION

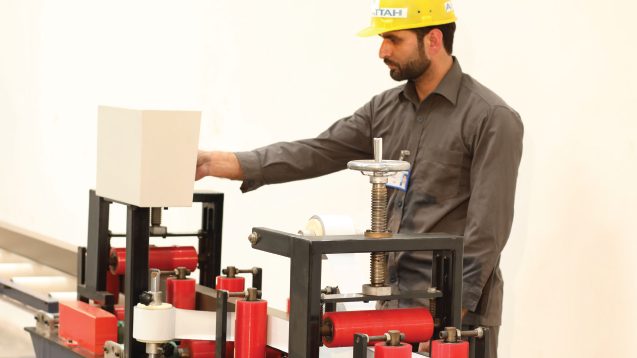

We know how to keep the aluminium scratch less after installation till the final finishing of project; we put protection tape at profiles to protect them from all the adverse effects during construction.

PACKING

Finally, each Profile is wrapped in a polythene bag and, then, packed in bundles by our latest packing machine.

GUARANTEE

Al-Fattah Aluminium gives Life Time Guarantee of all its products.
